PACKAGED AIRCON UNIT
PACKAGED AIRCON UNIT

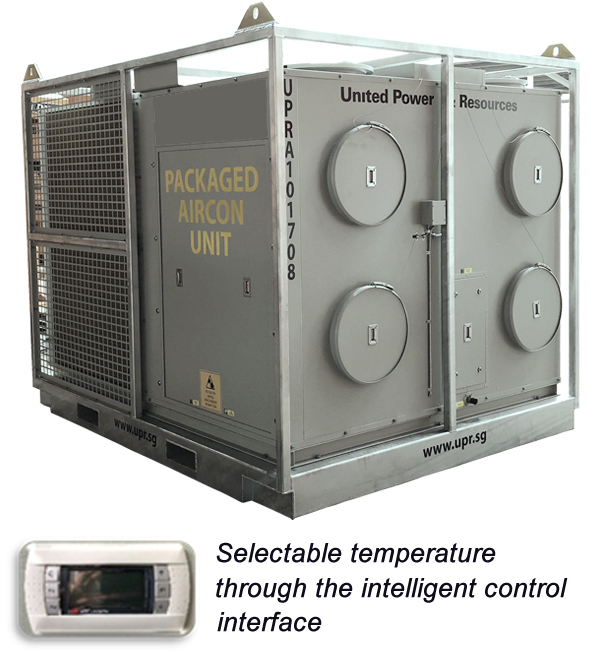

United Power Packaged Aircon Unit is capable of covering a wide variety of cooling needs in industries like in Events, shipbuilding, construction sites, industrial, shopping malls and offices.
The powerful yet compact machine has its compressor, fans, coils and air handler, all housed in a single unit and is the recommended choice for sites with space constraint. Engineered as a dual-package system, it provides not only cold but hot air as well.
The Aircon Unit runs at industry-leading soundproofing level, making them perfect for usage in tents and marquees without disturbing the event.
- Remote Start / Stop capability
- Remote common fault alarm indicator
- Intuitive Control Panel Interface
- Small operating footprint for space optimization
PACKAGED AIRCON UNIT SPECIFICATIONS
| Capacity | Dimensions (m) | Weight (kg) | Design Flowrate (m³/h) | Operating Voltage (V) | Frequency (Hz) | |||
|---|---|---|---|---|---|---|---|---|
| kW | RT | Length | Width | Height | ||||
| 50 | 14 | 2.3 | 2.2 | 2.1 | 1700 | 9000 | 380-480V / 3Ph | 50 / 60 |
| 100 | 28 | 2.9 | 2.3 | 2.3 | 2200 | 20000 | 380-480V / 3Ph | 50 / 60 |
* Specifications are subject to change without prior notice
