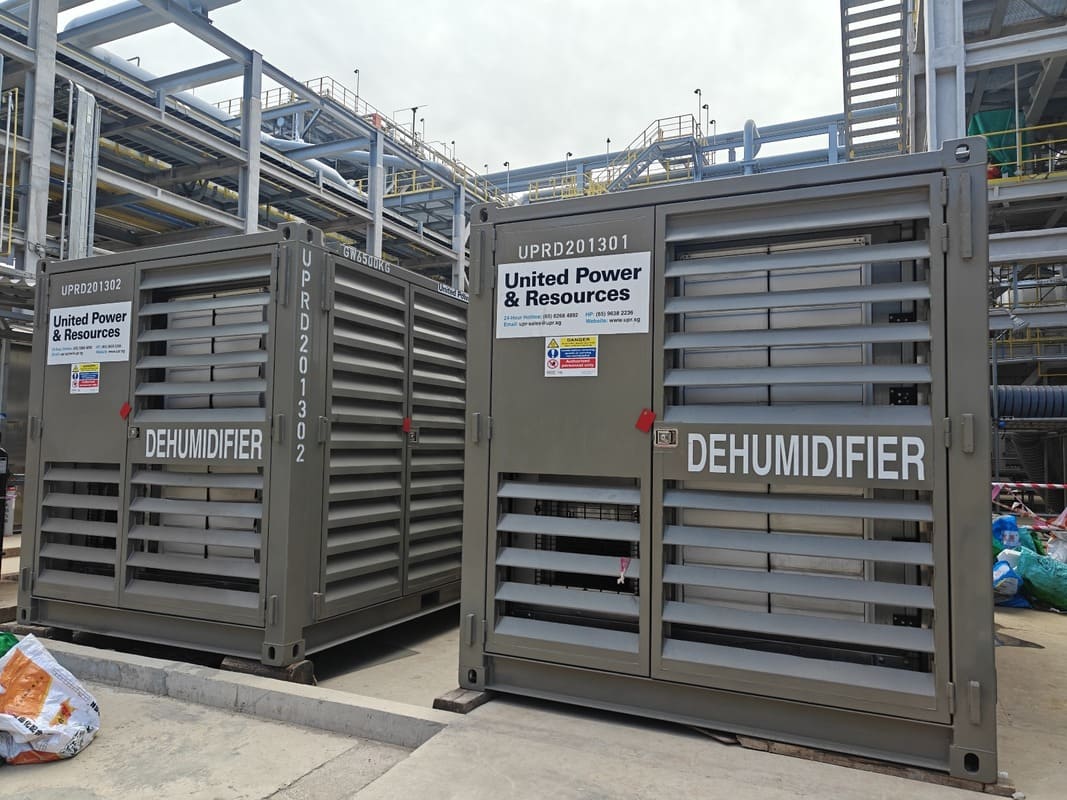

Portable Dry Cool Dehumidifier System
Portable Dry Cool Dehumidifier
UPR’s desiccant dehumidification system utilise the Munter’s patented design to remove air moisture at low temperature and humidity.

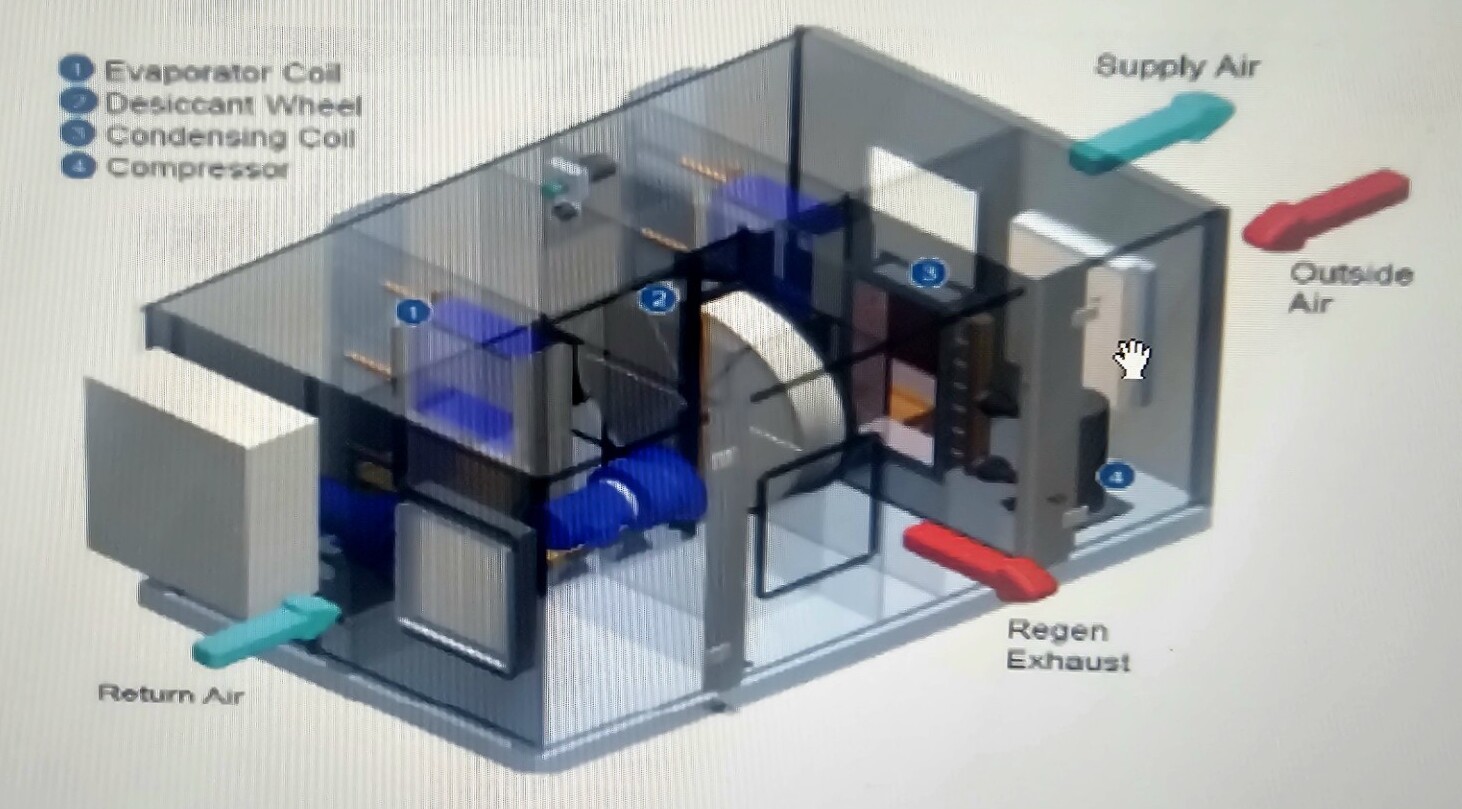

The system comprises the design of desiccant wheels to attract and retain water moisture and through its advanced energy efficiency process to achieve dry air. In the process, permitting heat rejected from the cooling cycle to reactivate the desiccant wheel. The provision of dry air at a desired temperature and dew point is particularly useful to the shipbuilding and repairing industries where dry air is needed before additional coating of paints is strayed onto the vessel structures.
UPR dehumidifier offers dry air flow at 13,000 nomical SCMH or 8,000CFM. And achieves a low drew points at -45degree F. It is about 40% more energy efficient as the reheating of the desiccant dryer is by mean of the rejected heat of the cooling unit.
Portable Dry Cool Dehumidifier Specification
Performance Data
| Air Volume: | 13,000 SCFM / 6,000 SCMH |
| External Static Pressure: | 3.00” WG |
| Type / Class: | BAF / H |
| Fan RPM: | 1,150 |
| Motor HP: | 15 |
COOLING COIL DATA
| Refrigerant Type: | R-410A |
| Total Capacity: | 40 TONS |
| Coil circuits: | 2 |
| Coil DP: | 0.57 WG” |
PHYSICAL DATA
| Length: | 4.24 meter |
| Width: | 2.12 meter |
| Height: | 2.75 meter |
| Weight (including cage weight): | Approx. 3.6 T |
DESSICANT WHEEL
| Pressure Drop Process: | 1.20 WG” |
| Pressure Drop Reactivation: | 1.25 WG” |
| Moisture Removal: | 297 lb./day (134.8 kg/hr) |
ELECTRICAL DATA
| System Voltage: |
400V ~ 415V / 50Hz 460V ~ 480V / 60Hz |
| Full Load Current: | 98A |
| Max Over-Current Protection: | 125A |
Application
- Pre-treatment of surface for spray painting especially inside ship hulls.
- The health care industry likes hospitals.
- Remove moisture content in the factory environment that needs to always be dry.
- Provide dry cool air for offices and highly sensitive operating areas.
- Prevent mold and mildew growth, reducing musty odors and improve overall comfort by lowering humidity level.
